Features & Benefits:

• See beyond the limitations of single-spot IR thermometers with a 160 × 120 (19,200 pixel) true thermal imager
• FLIR patented MSX® enhancement adds sharp visual detail to thermal images, making it easier to diagnose problems
• Measure a wide range of temperatures, from -25°C to 550°C (-13°F to 1022°F)
• Multipoint Laser pointer provides a circle to clearly show the area you are measuring
• Rugged and reliable with an IP54 enclosure that protects the camera from dirt, dust, and oil

The FLIR TG275 Automotive Diagnostic Thermal Camera combines non-contact temperature measurement and thermal imaging into one troubleshooting tool to help you quickly find the source of heat-related problems and spot potential faults when performing automotive maintenance and repair

Features and Benefits:

• 9.7" LED touch screen
• A9 Quad Core 1.4 GHz processor
• Android based software / Ice Cream Sandwich OS
• 5MP camera / 32GB Solid State drive
• 11000 mAh Lithium-Polymer battery
• ECM parameter programming coverage, and regeneration derate reset up to 2020 year models
• J2534 Pass-thru programming device with updateable internal Bluetooth VCI
• Complete OBDII connector kit and programming cables
• Diagnose manufacturer-specific systems
• View and graph live data
• Performs standard pass-thru programming
• One touch instant VIN indentification
• Auto scan
• OE level vehicle coverage and diagnostic functionality
• Adaptations and coding
• Includes 1 year warranty / 1 year FREE software updates

Features and Benefits:

• Actuates fuel pump when the engine is not running
• Plugs in place of relay
• Controls fuel pump independent of "key-on" systems
• Operating range: Up to 20 amp continuous, 30 amp surge (12V)
• Covers most makes and models

The 6-Piece set of Relay Bypass Switches combines the IPA 9036 and IPA 9037 into one convenient master kit. The Relay Bypass Switch plugs in place of the fuel pump relay and provides direct control over the fuel pump circuit. It can be used to actuate the fuel pump when the engine is not running, allowing the fuel pressure to be read. Operating Range: 20 Amp Continuous, 30 Amp Surge (12V)APPLICATION LIST:9036-1Small Spade Relay2000 and Newer Domestic, Korean, and Japanese9036-2Medium Spade RelayDomestic and Japanese1970-20099036-3Large Spade RelayVolkswagen 1999-2005Audi 2004-20069037-1Large Spade RelayGM, Chrysler, and Japanese1985-20089037-2Medium Spade RelayBMW 1995-20069037-3Large Rectangular RelayGM, Chrysler, and Japanese 1995-2007

Features & Benefits:

• Quick Mode & Advanced Mode Options
• Read/Activate/Relearn All Known Sensors
• Detect & Display TPMS System Faults
• Display Vehicle-Specific Relearn Procedures; Perform OBDII Relearns
• 8 Autel MX-Sensors Included

The TS508K is a TPMS service tool and MX-Sensor kit. The TS508 tool features Quick and Advance modes of TPMS service and a TPMS status screen. It can read/activate/relearn all known sensors, has 4 methods of MX-Sensor programming, and performs placard value resets on supported vehicles. The TS508K displays on-tool MX-Sensor relearn procedures including OBDII and can do key fob signal tests. It is updatable via PC, and includes an OBDII cable and 8 MX-Sensors. A 1-year tool warranty and free lifetime software updates are available with purchase.

Features and Benefits:

• Kit includes 5 new relay adapters and blow mold case!
• 3 new adapters for testing shielded relays
• 2 adapters for testing new relay types commonly used on fuel pumps and other powered devices
• Relay Buddy finds bad relays - loads the switch contacts - cycles the relay 10 times
• Can be set for 4 or 5 pin relays - green light if relay is good - red light if relay is bad

From the very introduction of 190 Relay Buddy, we've had the request to add adapters. With the addition of these new test adapters, we expect another round of growth in this product. Applications: automotive, heavy duty, marine, RV equipment.

Features and Benefits:

• Full coverage including Domestic, Asian, European vehicles 1996 and newer OBD2
• Supports Reset functions of ABS Bleeding, Oil light, EPB, DPF, SAS
• Read and clear DTCs of vehicle ENG, Automatic Transmission, ABS, SRS systems
• Touch Screen 5 inch in size, 720p screen resolution with easy to use user interface
• Diagnostic report automatically generates and share via email

CRP Elite is a brand new high-end auto diagnostic tool based on Android 7.0. It carries on LAUNCH advantages in the vehicle diagnostic technology, such as abundant special functions, models wide coverage, powerful test functions, professional test report, etc. Also it adds the AutoDetect function to access the diagnosis in a short time. Moreover, it supports test report sharing by emails and software updating via internet much more easier and timely.

Features and Benefits:

• Unit is self contained, no other equipment needed
• 12 Volt, 4.5 amp/hour sealed lead acid battery included inside unit
• LED indicates connection to battery circuit
• Protected by a 4 amp circuit breaker
• Direct wired OBD2 connector

Features and Benefits:

• Touchscreen Android diagnostics tablet
• Wirelessly diagnose vehicles via Blue tooth VCI
• Read/Clear codes and view freeze frame and live data
• Key programming, module coding and adaptations
• Includes one year of free software updates

The MaxiSYS 906BT is a wireless Android automotive diagnostics tablet that can easily read and erase codes on all modules, view freeze frame and live data, code and perform adaptations on modules and program keys. Compatible with domestic, Asian and European vehicles including SuperCars, 1996 and newer.

Features and Benefits:

• Troubleshoots tractor trailer circuits
• One person can now test all the lighting
• Allows bypassing of troubled circuitry while on the road
• Eliminates guesswork
• Packaged with an extra jumper connector

The 7 round pin trailer tester identifies faulty circuit on trucks and trailers by attaching to the wire terminals Plugs in line to the trailer to allow the truck to power the trailer while you test each circuit. Also has an emergency bypass feature which allows the user to remove the pin on the faulty circuit and jump power from the 12 volt supply for a temporary fix.

Features and Benefits

• Top-of-the line timing light for the selective do-it-yourselfer
• Split-screen digital LCD readout
• One handed operation with slim, rotating barrel
• Detachable leads, metal inductive pickup
• Patented Skip Circuitry Test up to 9,990 RPM

The INNOVA® Timing Lights include a full range of options designed to meet the needs of DIYers with many of the features that professional installers demand. Their wide coverage, proven quality and competitive price make them the tool of choice for use on the vehicles of today and tomorrow. Split-screen digital LCD readout displays Tachometer and Advance functions simultaneously (Digital Tach: 249 to 9,990 RPM; Digital Advance: 0° to 90°). Slim, rotating barrel for better aim at timing mark. Detachable leads, metal inductive pickup. Protective Hand Guard. Patented Skip Circuitry Test up to 9,990 RPM. One-hand Operation.

Features and Benefits:

• Instantly power up, and ground, components with the press of a switch.
• Find bad grounds, test polarity, and check continuity.
• The easy to read back-lit voltmeter reads voltage in 1/10th volt increments from 1/10th of a volt up to 70v.
• The PPLS01 Gold Series Lead Set:
• Two self centering piercing probes handle wires from 28-8awg.
• Stack-able 1, 3 6 ft leads enable you to customize your leads from 1-10ft.
• Compatible with both the PP319 and the ECT2000.

Features and Benefits

• Magnetic back allows for mounting to steel surfaces
• Retractable test leads pull out and stay at desired length
• Rewind test leads when not in use
• 18-gauge copper wire
• Different colored wires for easy identification

Features and Benefits:

• Provides direction and distance to shorts in a vehicle cable
• Tests motors, loads, lights, relays, sensors, fuses, wires & circuits
• Determines circuit polarity
• Determines system voltages for testing and bad ground indication
• Helps locate open circuits

The PPKIT03S combines the power of the Power Probe III & PPLS01 with the ECT3000 to quickly troubleshoot and diagnose circuit conditions. Save time by not tearing up wire harnesses, panels, carpets, and more to locate open or shorted circuits.

Features and Benefits:

• Supplies Power and Ground for Functional Component Testing
• Fuel Injector tester for easy circuit diagnosis
• Signal Distance indicator bar
• 10 minute auto shut off
• Large Color LCD Screen with Easy to Navigate User Menu

The Power Probe 4 Master Combo Kit combines the Power Probe 4, PPECT3000 and accessories to provide the ultimate combination of diagnostic and circuit-testing capabilities. The Power Probe 4 provides simplified testing of Motors, Lights, Relays, and Sensors, and even Fuel Injectors. Also, like all Power Probe circuit-testers, it supplies Power and Ground for functional component testing on or off the vehicle.

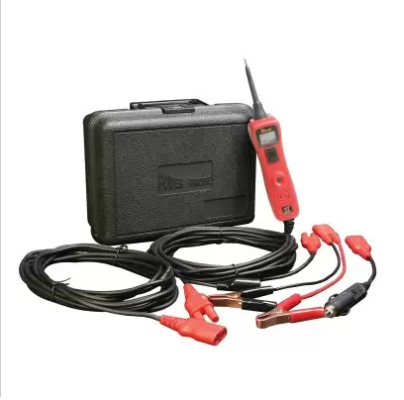

Features and Benefits:

• Digital voltmeter with min/max voltage capturing
• 4mm banana jack
• 20 ft power lead
• Tests for bad grounds and continuity
• Supplies power and ground

The Power Probe III Circuit tester (Red) with the ability to supply Power or Ground with an indicator tone and bright-white LED headlamps. Features Digital Voltmeter, Min/Max, Audible Circuit Monitoring, 4mm Standard Banana Jack and Auxiliary Ground for component testing. Works with 12 - 24 VDC Systems.

Includes: Power Probe III (with probe tip and battery cable clip set) and instructional video.

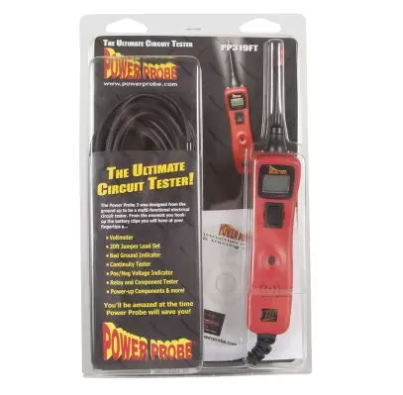

Features and Benefits

• Power Up Components
• Audio Tone
• Voltmeter
• 12 - 24 Volt Range
• 20ft. Jumper Lead Set
• Bad Ground Indicator
• Continuity Tester
• Short Circuit Indicator
• Relay and Component Tester

The 20ft. lead will allow you to test bumper-to-bumper without jumper leads. Audio tone indicates positive with a high pitched tone and negative with a low pitched tone. The audio feature can be disabled when testing relays. The Power Probe III has 2 cool white LEDs that flood the work area with bright light. The housing is sleek and feels great in your hand.

Includes:

Power Probe 3 (with probe tip and battery cable clip set)

20 Foot Extension Lead Cable

Cigarette Lighter Adapter

Instruction Manual

Carrying Case
